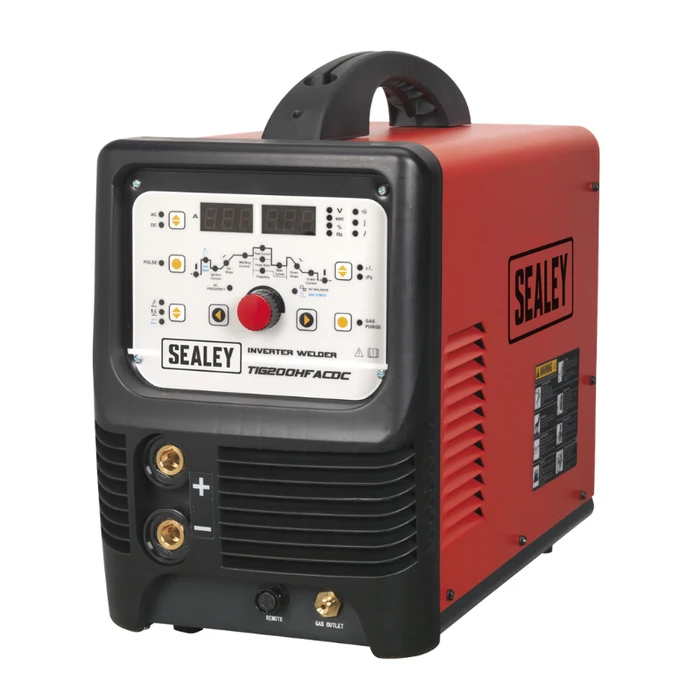

Sealey TIG200HFACDC TIG/MMA HF AC/DC Inverter Welder 200A 230V

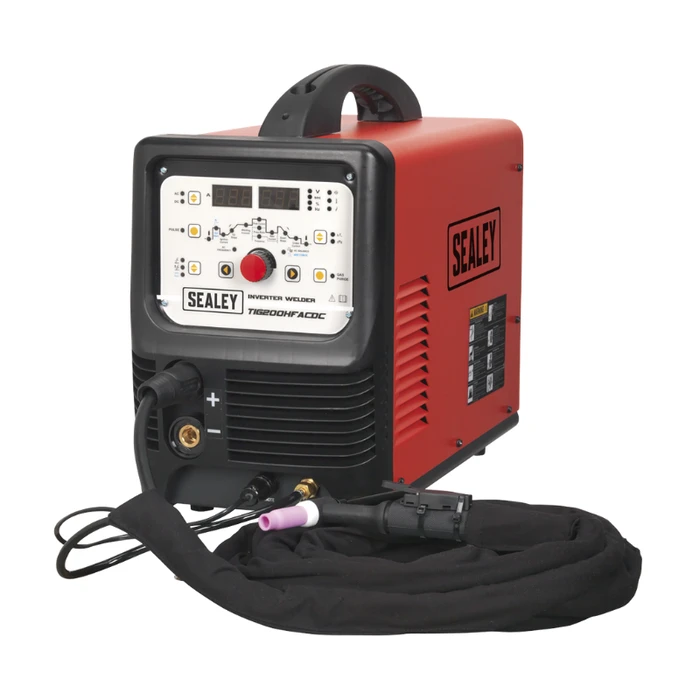

Sealey TIG200HFACDC TIG/MMA HF AC/DC Inverter Welder 200A 230V - Image 2

Sealey TIG200HFACDC TIG/MMA HF AC/DC Inverter Welder 200A 230V

Original price was: $320.00.Current price is: $99.99.

Fan-cooled AC/DC power supply
For pulse TIG and MMA welding applications
TIG cycle includes post gas and current down-slope

SKU: TIG200HFACDC Categories: ARC (MMA) Welders, Welding Equipment, Welding Machines

Shop with confidence, enjoy free returns.
The quality solution for all your needs.
Experience Quality, Shop with Us
Guaranteed High Quality

Key Features

Nett Weight:

23.5kg

Power Output:

10-200A

Duty Cycle:

100% @ 77A, 15% @ 200A

Electrode Capacity:

Ø1.6-6.4mm

Absorbed Power:

8kW

Supply:

230V*

Protection:

IP21S

Weight:

13.5kg

Accessories:

Yes

MMA Electrode Holder (Optional):

MMA01

Welding Torch (Including)

TIG12S

Insulation Class

Foot Pedal (Optional)

TIG200HFACDCF

Note:

*to achieve maximum power a 32A supply may be required.

Fan-cooled AC/DC power supply for pulse TIG and MMA welding applications. Suitable for welding aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. TIG cycle includes post gas and current down-slope regulation. Features regulated high frequency (HF) push-button arc that prevents having to touch the workpiece to start, keeping the tip in good condition for longer. Includes connector for foot pedal when more control is required. Foot pedal available as an optional accessory (Model No. TIG200HFACDCF).

Weight (Kg)	26.700000
Input Supply (V/A)	230
Absorbed Power (kW)	7.9
Duty Cycle (A)	100% @ 77A, 15% @ 200A
Output Current (A)	10-200A
Electrode Diameter (mm)	1.6-4
Welder Construction	Inverter
Machine Type	ARC (MMA), TIG
Insulation	Class H
Protection Class	IP21S
